PVC Coated Hexagonal Gabion Box For Erosion Control / Gabion Mattress

PVC Coated Hexagonal Gabion Box For Erosion Control / Gabion Mattress
PVC Coated Hexagonal Gabion Box For Erosion Control / Gabion Mattress PVC Coated Hexagonal Gabion Box For Erosion Control / Gabion Mattress

Large Image :  PVC Coated Hexagonal Gabion Box For Erosion Control / Gabion Mattress

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-208
Payment & Shipping Terms:
Minimum Order Quantity: 200 sets
Price: Negotiable
Packaging Details: Covered with plastic and the put on wooden pallet
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets per week
Detailed Product Description
Wire Diameter: 2.0-5.0mm Hole Size: 60*80,80*100,100*120 Etc
Surface Treatment: Pvc Coated Material: Steel Wire,iron Wire Etc
Hole Shape: Hexagonal Color: Grey,green,black Etc
Type: Double Twist Name: PVC Coated Hexagonal Gabion Box For Erosion Control / Gabion Mattress
High Light:

plastic coated wire mesh baskets

,

pvc coated galvanized wire mesh

PVC Coated Hexagonal Gabion Box For Erosion Control / Gabion Mattress



Product Description:

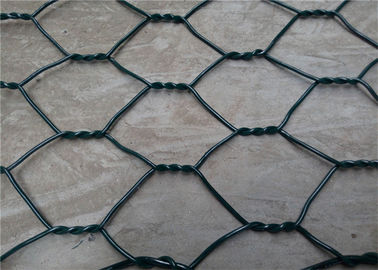

Gabions is made of double twisted hexagonal woven steel wire mesh, as per ASTM A975-97. Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects.



We wrap PVC protection layer on the surface of galvanized steel wire, and then weave it into hexagonal wire netting include all specification. This PVC protection layer can strength the protection against high pollution environment. Meanwhile we can choose different colors in order to match it with the surrounding environment.



Hexagonal Wire Netting Gabions
Opening
(mm)
Wire Diameter(Metal Wire)
(mm)
Wire Diameter (PVC Coate)/
Inner/Outside(mm)
Strands
60X80 f2.0-2.8 f2.0/3.0-2.5/3.5 3
80X100 f2.0-3.2 f2.0/3.0-2.8/3.8 3
80X120 f2.0-3.2 f2.0/3.0-2.8/3.8 3
100X120 f2.0-3.4 f2.0/3.0-2.8/3.8 3
100X150 f2.0-3.4 f2.0/3.0-2.8/3.8 3
120X150 f2.0-4.0 f2.0/3.0-3.0/4.0 3

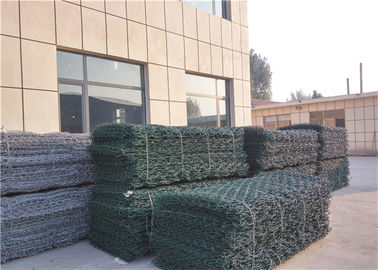

Gabion Basket
A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.



Gabion Mattress
Double Twisted wire mesh container uniformly partitioned into internal cells with relatively small height inrelation to other dimensions, having smaller mesh openings than the mesh used for gabion basket, gabion mattresses are generally used for riverbank protection and channel linings.



Application of PVC coated gabion box



Gabions are used in many situation including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls etc.



Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Port project
Keep off dust wall
Roadway protection.



Features and advantages of PVC coated gabions



PVC coated gabions can bear the strong depressions and extruding force and keep its shape.
Gabion are easy enough to install that no experience is necessary to get a good result.
PVC coated gabions is better in corrosion resistance, anti oxidation, durability,
PVC coated gabion is more beautiful than the non-PVC coated.



If you want use the PVC coated gabion in retaining wall, channel linings and slope protection applications, you may need the higher gabions, you can choose the PVC coated gabion box, which has maximum 1.5 meter height. If you need higher, just pile the 1 meter height gabions up for protection.



If you need more flexible PVC coated gabions to be used in coastal protection, river bank protection and other project, which need the lower gabions, you can choose the PVC coated gabion mattress. The maximum height of gabion mattress is 0.5 meter and minimum height can be 0.17 m. It is more flexible and easy to operating during using.



PVC Coated Hexagonal Gabion Box For Erosion Control / Gabion Mattress 0
