Rockfall Protection Wire Mesh Rock Retaining Wall Pvc Coated Surface

Rockfall Protection Wire Mesh Rock Retaining Wall Pvc Coated Surface
Rockfall Protection Wire Mesh Rock Retaining Wall Pvc Coated Surface Rockfall Protection Wire Mesh Rock Retaining Wall Pvc Coated Surface

Large Image :  Rockfall Protection Wire Mesh Rock Retaining Wall Pvc Coated Surface

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-146
Payment & Shipping Terms:
Minimum Order Quantity: 3000 square meters
Price: Negotiable
Packaging Details: Covered with plastic, in pallet.
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 100000 square meters per week
Detailed Product Description
Wire Diameter: 2.0-4.0mm Type: Woven Mesh
Surface: Galvanized Or Pvc Coated Aperture: 10x12cm,6*8cm,8x10cm
Length: 1-30M Hole Shape: Hexagonal
Application: Slope Protection
High Light:

bank retaining mesh

,

wire rock baskets

Hexagonal gabion wire netting for rockfall protection / woven gabion mesh

Product Description:

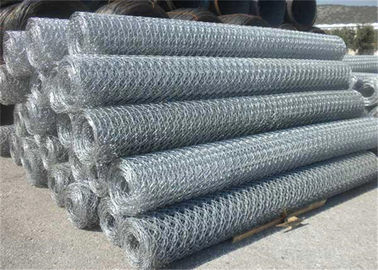

Rockfall Protection Netting is a steel woven hexagonal opening wire mesh which is used to prevent rocks and debris from falling onto roads, railways and other structures.

The mesh is made of heavily zinc coated, Galfan (ZincAl), Heavy Zinc+PVC or Galfan+PVC coated double twisted steel woven wire. Due to the characteristics of double twist, the steel wire netting can withstand the force of falling rocks without unraveling in the event of wire breakage.

Rockfall protection mesh feature:

Rockfall Protection Mesh is unrolled or draped over the slope and secured with anchor bolts. In time, rocks and debris will fall to the foot of the slope behind the steel mesh drapery. Rocks can then be collected in a trench of suitable dimensions, at the foot of the slope.

If desired, the mesh can be secured both at the top of the slope and at the foot of the slope with high strength cables. In this instance it is good practice to allow the lower cable to be loosened, in order that the collected debris can be removed safely.


Mesh sizeMesh wireSelvedge wireBox sizes in mtrs
Length/mWidth/mHeight/m
60 x 80
GI2.0 mm
  2.2 mm
  2.4 mm
GI + PVC2.0/3.0 mm
  2.2/3.2 mm
  2.4/3.4 mm



GI2.4 mm
  2.7 mm

GI + PVC2.4/3.4 mm
  2.7/3.7 mm




1 to 61 to 20.15 to 1.0
80 x l00
GI2.4 mm
  2.7 mm
  3.0 mm
GI + PVC2.4/3.4 mm
  2.7/3.7 mm
  3.0/4.0 mm



GI3.0 mm
  3.4 mm
  3.9 mm
GI + PVC3.0/4.0 mm
  3.4/4.4 mm
  3.9/4.9 mm



1 to 61 to 20.5 to 1.0
10O x 120
GI2.4 mm
  2.7 mm
  3.0 mm
GI + PVC2.4/3.4 mm
  2.7/3.7 mm
  3.0/4.0 mm



GI3.0 mm
  3.4 mm
  3.9 mm
GI + PVC3.0/4.0 mm
  3.4/4.4 mm
  3.9/4.9 mm



1 to 61 to 20.5 to 1.0


Tie wire of GI (2.0 mm, 2.2 mm or 2.4 mm) or GI + PVC (2.0/3.0 mm, 2.2/3.2 mm, or 2.4/3.4 mm) coated, generally the quantity supplied is 5% of the box weight.
