Galfan Coated Welded Gabion Box 3.0-6.0mm Wire for River Control

Large Image : Galfan Coated Welded Gabion Box 3.0-6.0mm Wire for River Control

Product Details:

Place of Origin:	China
Brand Name:	Nova
Certification:	ISO9001
Model Number:	Nova-172

Payment & Shipping Terms:

Minimum Order Quantity:	200 sets
Price:	1-50US$/m2
Packaging Details:	Covered with plastic and the put on wooden pallet
Delivery Time:	5-10 days, according to buyer's requirement
Payment Terms:	T/T,Western Union,L/C,MoneyGram
Supply Ability:	20000 sets per week

Contact Now

Galfan Coated Welded Gabion Box 3.0-6.0mm Wire for River Control

Description

Wire Diameter:	3.0-6.0mm	Hole Size:	5050,7575,50100,100100mm
Hole Shape:	Square	Feature:	High Strength, Low Cost
Application:	Bank Control, River Control	Type:	Welded Mesh Box
Material:	Galfan Coated Wire
Highlight:	weave wire mesh , flood protection embankment

Zn Al 10% Welded Gabion Box Galfan Coated Wire For Flood Protection

Durable Gabion Baskets for Construction and Landscaping

Our high-quality gabion baskets provide versatile, long-lasting solutions for construction and landscaping applications. These wire cages filled with rocks or stone offer exceptional performance in retaining walls, erosion control, and flood protection.

Product Description

Welded Gabion boxes are manufactured from low carbon steel wire with high tensile strength. The electric fusion welded prefabricated grid consists of parallel longitudinal wires accurately spaced and welded to cross wires, then hot-dipped galvanized or PVC coated for extended durability.

Key Specifications

Wire diameter (mm)	Mesh size (mm)	Size (m)	No. of diaphragms	Deviation
2.0-4.0	60×80, 80×100, 90×110, 100×120, 120×150	1×1×0.3	0	±5%
		1×1×0.5	0
		1×1×1	0
		2×1×0.3	1
		2×1×0.5	1
		2×1×1	1
		3×1×0.3	2
		3×1×0.5	2
		3×1×1	2
		4×1×0.3	3
		4×1×0.5	3
		4×1×1	3
Custom sizes available according to buyer requirements

Materials & Surface Treatments

Material: Low carbon steel wire; Galvanized wire, PVC coated wire
Surface Treatment: Hot-dipped galvanized, electric galvanized, PVC coated
Construction: Welded mesh panel with spring steel lacing wire

Applications

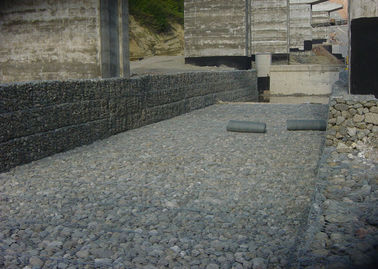

Ideal for earth movement and erosion control, river management, reservoir and canal refurbishment, landscaping, retaining walls, and flood protection structures.

Key Characteristics

Cost-effective solution - simply fill with stones and seal
Easy to construct with no special technology required
Exceptional durability against natural elements, rust, and harsh weather
Maintains structural integrity when deformed or distorted
Promotes environmental integration with space for vegetation growth
Excellent permeability for water flow
Transport-efficient design that folds for compact shipping
