|Wire Diameter:||3.0-6.0mm||Hole Size:||75*75,100*100mm|
|Material:||Galvanized Wire||Color:||Green,black,Khaki Etc|
|Size:||Can Be Customized||Type:||Recoverable|
|Sample Time:||1-3 Days|
Welded wire mesh gabion baskets for bastion barrier / security bastion barrier
Securest Bastion Barrier - Reliable & Convenient
Securest bastion barrier, also known as blast wall, is a type of defensive barrier generally used in dangerous spots around the globe such as Iraq, Afghanistan and other places with ever-present threats. As its name implies, Securest bastion barrier is ideal to protect troops and civilian personnel from attacks from terrorists, insurgents and other adversaries. In addition, they are also ideal to define boundaries, secure vehicles, equipment and other critical assets.

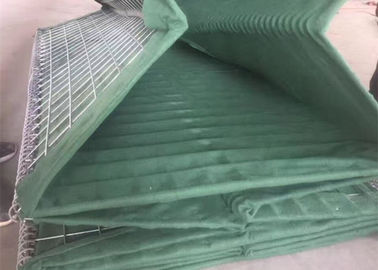

Our Securest bastion barriers, as a variant of gabion basket, can provide efficient and reliable protection. They are composed of welded wire mesh panels connected by spiral joints and lined with heavy duty non-woven polypropylene geotextile to prevent filling materials from leaking out from mesh openings.
Recoverable style Securest is an enhanced version in the same sizes, deploy & fill methods as standard Securest bastion barrier. But it offers an easy removal at the end of its use - just removing one joint pin and let the filling material flow freely from the barrier unit. Thus, barriers can be recovered in a simple, cost-saving way; meanwhile, they can be flat packed and transported to another projects easily.
|Bastion barrier specification|
|1||2'||2'||4'||2||Standard / Recoverable|
|2||2'||2'||10'||5||Standard / Recoverable|
|3||3'3"||2'6"||30'||9||Standard / Recoverable|
|4||3'3"||3'3"||32'9"||10||Standard / Recoverable|
|5||3'3"||5'||32'9"||6||Standard / Recoverable|
|6||4'||1'||4'||2||Standard / Recoverable|
|7||4'6"||3'6"||32'9"||9||Standard / Recoverable|
|8||4'6"||4'||32'9"||9||Standard / Recoverable|
|9||5'6"||2'||10'||5||Standard / Recoverable|
|10||7'||3'6"||108'||30||Standard / Recoverable|
|11||7'3"||5'||100'||20||Standard / Recoverable|
|12||7'3"||7'||91'||15||Standard / Recoverable|
Secure & reliable

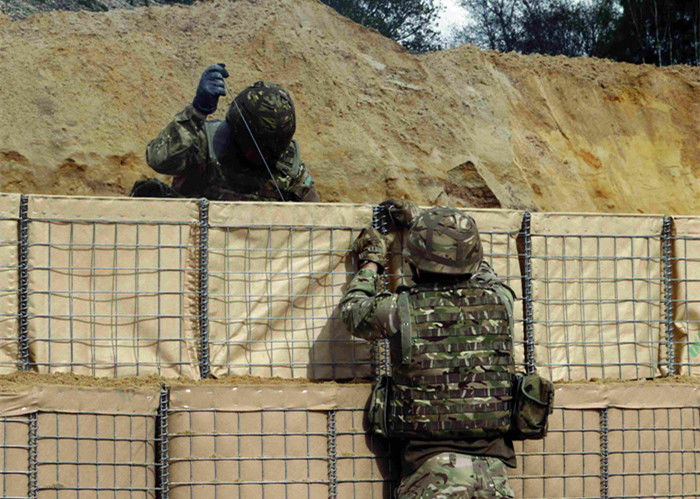

Once filled with soil, sand or gravel, Securest forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire.
Securest bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.
Labor saving design
Securest can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.
Quick & easy assembly
Securest provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment.
