Multiple Twisted Hexagonal Gabion Box , Steel Wire Mesh ISO9001 Approved

China Multiple Twisted Hexagonal Gabion Box , Steel Wire Mesh ISO9001 Approved supplier
Multiple Twisted Hexagonal Gabion Box , Steel Wire Mesh ISO9001 Approved supplier Multiple Twisted Hexagonal Gabion Box , Steel Wire Mesh ISO9001 Approved supplier

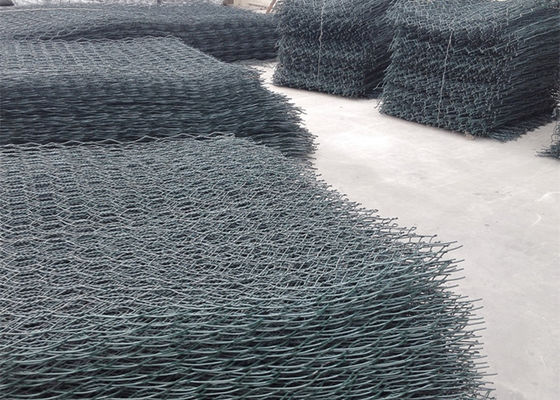

Large Image :  Multiple Twisted Hexagonal Gabion Box , Steel Wire Mesh ISO9001 Approved

Product Details:

Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-177

Payment & Shipping Terms:

Minimum Order Quantity: 3000 square meters
Price: Negotiable
Packaging Details: Covered with plastic, in pallet.
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 100000 square meters per week
Contact Now
Detailed Product Description
Material: Galvanized Wire,pvc Coated Wire,galfan Wire Wire Gauge: 2.0-4.0mm
Hole Shape: Hexagonal Mesh Size: 60x80 80x100 80x120 100x120mm
Sample: Free Width: 1m,0.5M,2m Etc
Name: Gabion Wire Mesh Box

Multiple twisted hexagonal woven galvanized or PVC coated steel wire mesh



Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.



Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.



Applications:



Control and guide of water or flood
Flood bank or guiding bank
Prevention of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Seaport engineering
Isolation walls
Protection of road



Advantage:



Flexibility: Flexibility is an important benefit of any gabion structure. The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.



Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. Generally, the wire mesh is needed for the first few years of the structure’s life; later the void between the stones is filled with soil, silt, and plant roots which act as a bonding agent for the stones.



Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.



Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining, precluding the development of hydrostatic pressure behind the gabion wall. Drainage is accomplished by gravity, as well as evaporation as the porous structure permits air circulation through it. As plant growth develops within the structure, the process of transpiration assists in removing moisture from the backfill – a much more efficient system than weep holes in standard masonry walls.



Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:

It requires little maintenance, Its installations does not require skilled labor and stone fill is available on site or from nearby quarries, It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth. Gabions are porous, requiring no costly drainage provision


Ecology: Gabions is an environmentally sensitive solution to slope stabilization. It has already been mentioned that stone fill is done with natural stones making the gabions, naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.



Aesthetics: Gabions supporting vegetation has already been discussed; in some case the vegetation growth is so intense, making the gabion structure invisible, and pleasant to look at. Again if additional effort is given during construction, the gabion can create really pleasing structure with or without vegetation. Unlike other types of materials such a modular block walls the gabion stones do not discolor due to drainage.



Length (m) Width (m) Height (m) Spacer number Volume (m2) Tolerance range
2.0 1.0 0.15---0.3 1 0.3~0.6


Length :±/-3%
Width :±/-5%
Height :±/-5%
3.0 1.0 0.15---0.3 2 0.45~0.9
4.0 1.0 0.15---0.3 3 0.6~1.2
2.0 1.0 0.5 1 1.0
3.0 1.0 0.5 2 1.5
4.0 1.0 0.5 3 2.0
1.0 1.0 1.0 0 1.0
1.5 1.0 1.0 0 1.5
2.0 1.0 1.0 1 2.0
3.0 1.0 1.0 2 3.0
4.0 1.0 1.0 3 4.0



The size and specifications can be product according to buyer's requirement.
