Product Details:
Payment & Shipping Terms:
|
| Material: | Iron Wire,steel Wire,galfan Wire Etc | Wire Diameter: | 2.0-4.0mm |
|---|---|---|---|
| Hole Size: | 60*80,80*100,100*120mm Etc | Hole Shape: | Hexagonal |
| Surface Treatment: | Galvanized,Pvc,Galfan | Feature: | High Strength, Long Service Life |
| Application: | Stabilization And Reinforcement Of Slopes With Deviation | Size: | Can Be Customized |
| High Light: | weld mesh gabion baskets,gabion wire mesh boxes |
||
Product Description:
The stone box system is quick and easy to install, we supply all the necessary fixings required to create the gabion effect and can also source a wide range of stone fillings.
Unlike traditional gabion baskets, the unique design of the stone box system will ensure that the gabion face will not misshape or deform over time.
By using a mesh and stone facing, your retaining wall will have a more natural appearance than a traditional precast concrete wall and will fit better into its surroundings.

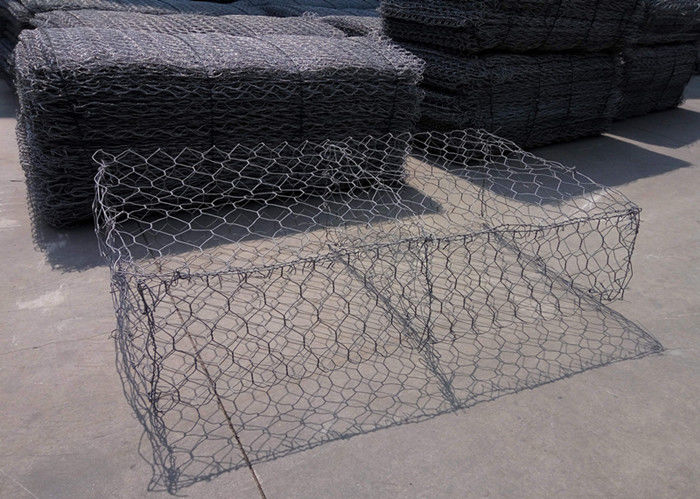

Gabion wire mesh boxes/basket specifications
| Wire diameter/mm | Mesh size /mm | Size/m | No. of diaphragms | Deviation |
| 2.0-4.0 |
60*80 80*100 90*110 100*120 120*150 |
1*1*0.3 | 0 | ± 5% |
| 1*1*0.5 | 0 | |||
| 1*1*1 | 0 | |||
| 2*1*0.3 | 1 | |||
| 2*1*0.5 | 1 | |||
| 2*1*1 | 1 | |||
| 3*1*0.3 | 2 | |||
| 3*1*0.5 | 2 | |||
| 3*1*1 | 2 | |||
| 4*1*0.3 | 3 | |||
| 4*1*0.5 | 3 | |||
| 4*1*1 | 3 | |||
| 2*0.5*0.5 | 1 | |||
| 3*0.5*0.5 | 2 | |||
| Customized according to buyer's requirement. | ||||
Gabion mesh box features:
Economic- Just fill the stone into the gabions box and seal it.
Simple installation- No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight- It can be folded together for transport and further installation.
1: The gabions of length > 2 m, are divided into cells every 1 m by diaphragms, for the better retaining of the gabion shape during the filling with stones and the installation at the worksite
2: The selvedge wires of the gabions have bigger diameter than the diameter of the mesh wires.
Applications:
Stabilization and reinforcement of slopes with deviation
Construction of support walls with flat or tiered surface
Preventive stabilization of soil
Preventive net for rock-fall confinement
Strengthening of water barriers, canals and docks
Re-direction of water flow of rivers and canals
Coating of river banks, canal and stream banks
Reinforcement of bridge base and extrusion of hydropower stations
Retaining of mounds
Packing & Delivery:
Packing Details: pallet or in bundle, as buyer's requirement.
Delivery Details: 15-20 Days after received the deposit by TT, according to buyer's quantity.
