80x100mm Riverbank Stability Woven Metal Gabion Box

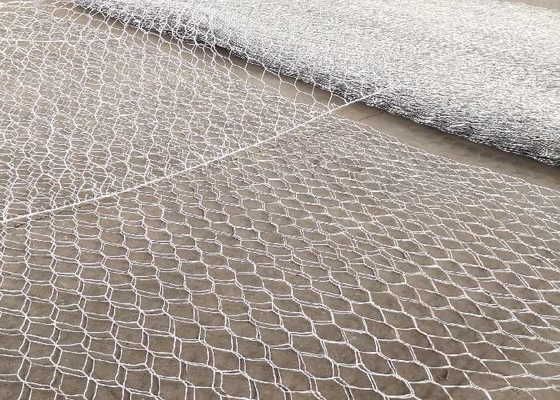

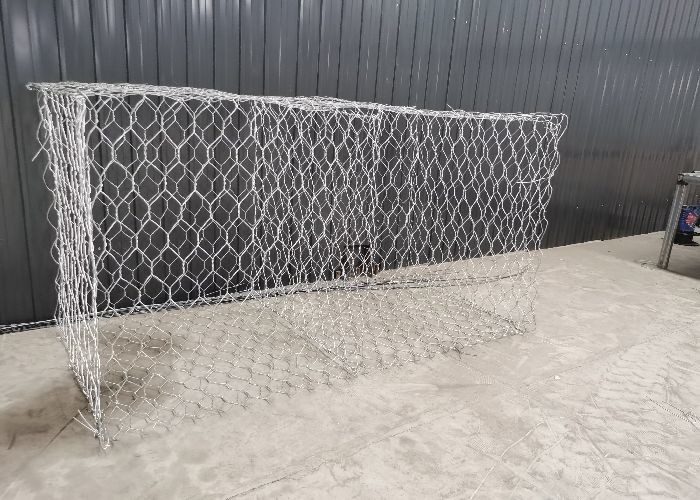

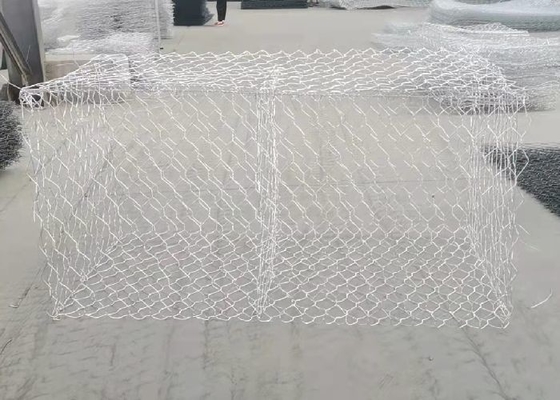

Nova metal gabion baskets are engineered from double twisted hexagonal woven iron wire mesh with different hole sizes with or without polymer coating. Typical hole sizes include 6×8mm, 80×100mm, and 100×120mm.
Nova metal gabion baskets for river bank stability products make use of the most up-to-date coating and manufacturing techniques to provide a highly practical and long-lasting product that engineers can confidently use in their designs.
Advantages of Nova Metal Gabion Box for Riverbank Stability
- Strong, flexible, and free-draining
- Environmentally friendly, aesthetically pleasing, and able to blend with surroundings
- Can be used on soft ground with minimal foundation preparation
- Provides immediate protection once erected
- Allows use of locally available, smaller-sized stone
- Low labor costs
Specification of Nova Metal Gabion Baskets
1. Nova double-twisted mesh is manufactured from zinc-coated steel wire conforming to Specification A641/A641M, Class 3 coating, soft temper.
2. Nova double-twisted mesh is manufactured from Zn-5A1-MM-coated or Zn-10A1-MM-coated steel wire conforming to Specification A856/A856M, Class 3 coating, soft temper.
| Minimum Weight of Zn per Unit Area of Zn coated Wire Surface |
| 214 gsm (gram per square meter) |
| 229 gsm |
| 229 gsm |
| 259 gsm |
| 259 gsm |
| 275 gsm |
Packing and Shipping
Nova metal gabion baskets are delivered flat-packed in bundles (20-50 pieces per bundle), assembled and filled with stones at the project site.
We provide worldwide shipping service by sea with 20ft or 40ft containers.
Ordering Information
Orders for material specification shall include:
- Quantity (number of units)
- Product type (gabions or revet mattresses)
- Size (length × width × height)
- Style of coating
- ASTM designation and year of issue
- Any special requirements
A typical ordering description:
100 sets of gabion baskets, 2×1×1 m (6×3×3 ft)
100 revet mattresses 4×2×0.23 m (12×6×0.75 ft)
100 lids 4×2 m (12×6 ft)
Style 1, 2, 3, or 4 with required fasteners or lacing wire and stiffeners conforming to ASTM A975.
We can send standard ASTM A975 upon request.
