Product Details:
Payment & Shipping Terms:
|
| Material: | Iron Wire, Steel Wire, Galfan Wire Etc | Wire Diameter: | 2.0-4.0mm |
|---|---|---|---|
| Mesh Size: | 60*80,80*100,100*120,120*150mm Etc | Hole Shape: | Hexagonal |
| Surface Treatment: | Zinc Coated,pvc Coated | Size: | Can Be Customized |
| Color: | Green, Gray, Bule,silver Etc | Application: | River Control |
| High Light: | metal welded wire mesh,landscape rock cages |
||
Product Description:

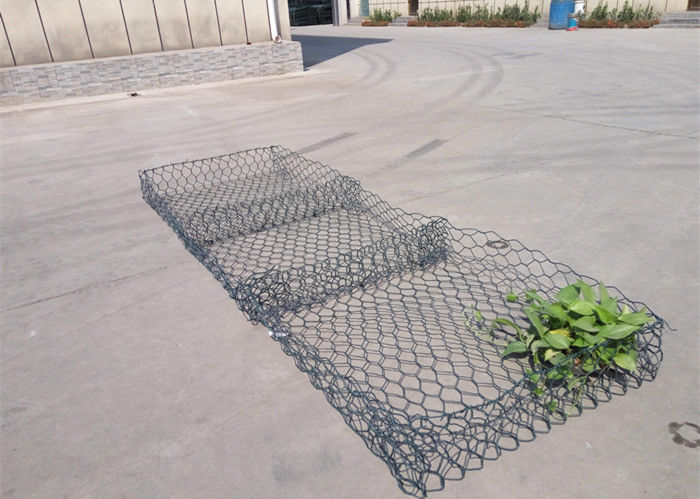

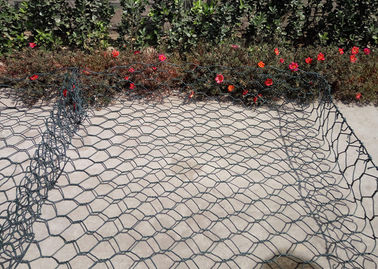

Gabion mattress/es are wire baskets of various sizes and dimensions with internal cells that are filled joined together to create a strong yet flexible structure. They are manufactured from heavy gauge double twisted hexagonal mesh of steel wire which is reinforced by heavier wire that runs along the edges. The wire will not unravel even when cut. Gabion mattress/es are a cost effective choice for your project because assembly is easy, requiring no specialized labor and nearby rock is used for fill.
Sizes of gabion mattress/:
Standard sizes: 6x2x0.17m 6x2x0.23m 6x2x0.30m 3x2x0.17m 3x2x0.23m 3x2x0.30m
Mesh size(mm): 60x80mm,80x100mm,100x120mm,120x150mm
Wire diameter: 2.2mm/3.2mm,2.4mm/3.4mm,2mm/3.0mm
Gabion Mattress/
| Length(m) | Width(m) | Height(m) | Mesh type(mm) |
| 3m | 2m | 0.15-0.20-0.25 | 80x100 |
| 4m | 2m | 0.15-0.20-0.25 | 80x100 |
| 5m | 2m | 0.15-0.20-0.25 | 80x100 |
| 6m | 2m | 0.15-0.20-0.25 | 80x100 |
| 3m | 2m | 0.17-0.23-0.30 | 60x80 |
| 4m | 2m | 0.17-0.23-0.30 | 60x80 |
| 5m | 2m | 0.17-0.23-0.30 | 60x80 |
| 6m | 2m | 0.17-0.23-0.30 | 60x80 |
(All sizes and dimensions are nominal. Tolerances of ± 3% of the width, length, and ±2.5 cm of the height shall be permitted.)
Advantages:
Construction is simple, without special skills.
A strong withstand natural damage and corrosion resistance and resistance to adverse effects of climate.
Withstand large-scale deformation, and does not collapse.
Cage rock crevice between the mud to plant production, with the surrounding natural environment melting together.
Has good permeability to prevent static fluid from the damage caused.
Save transportation costs. Can be folded up and assembly on site.
Gabion mattress application:
Control and guide of water or flood;
Preventing of rock breaking;
Water and soil protection
Strengthening structure of soil
Protection engineering of seaside area
Port project
Packing & Delivery:
Packing Details: In pallet or in bundle, as buyer's requirement.
Delivery Details: 5-10 Days after received the deposit by TT, according to buyer's quantity.
Contact Person: Ms. Anna
Tel: +8615350592434
Fax: +86-311-66535935
