Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 2.0-4.0mm | Mesh Size: | 80*100 |
|---|---|---|---|
| Hole Shape: | Hexagonal | Surface Treatment: | Zinc + Pvc Coated |
| Application: | River Bank Etc | Feature: | Anti-corrosion, Low Cost |
| High Light: | weld mesh gabion baskets,gabion wire mesh boxes |
||

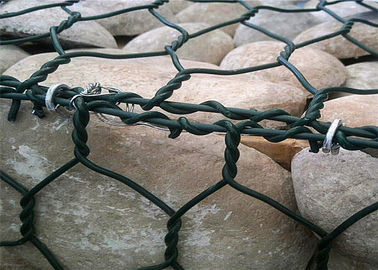

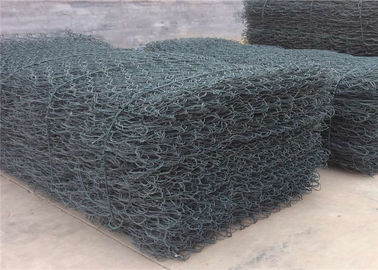

6 * 8 / 8 * 10 PVC coated material gabion basket for river bank
Gabion Baskets Description:

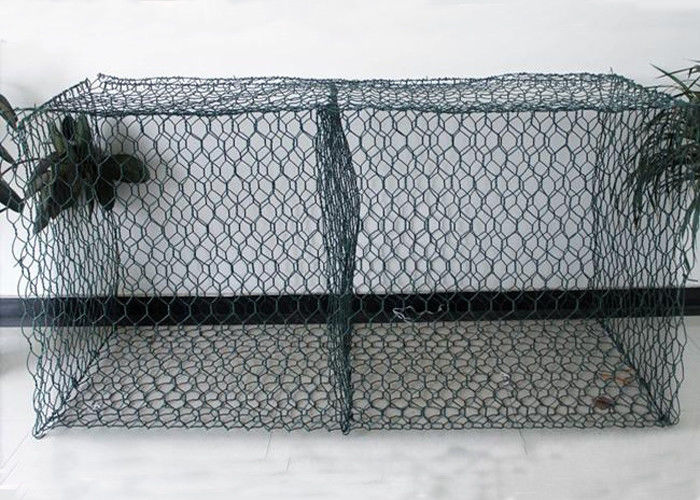

Gabion box are made of double - twisted hexagonal wire mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling.
Gabion Baskets Material:
PVC Coated Gabion baskets
The PVC gabion basket is coated with a PVC protective layer on the surface of the galvanized iron wire. This layer of PVC will greatly increase the service life of the wire mesh. It have different color.
Gabion Baskets Specifications:
| Opening(mm) | Wire Dia(mm) |
Wire dia (PVC coated) |
Strands |
| 60x80 | 2.0~2.8 | 2.0/3.0~2.5/3.5 | 3 |
| 80x100 | 2.0~3.2 | 2.0/3.0~2.8/3.8 | 3 |
| 80x120 | 2.0~3.2 | 2.0/3.0~2.8/3.8 | 3 |
| 100x120 | 2.0~3.4 | 2.0/3.0~2.8/3.8 | 3 |
| 100x150 | 2.0~3.4 | 2.0/3.0~2.8/3.8 | 3 |
| 120x150 | 2.0~4.0 | 2.0/3.0~3.0/4.0 | 3 |
| Gabion Size(m) | Mesh Model | |||
| 8x10 | ||||
| Length | Width | Height | Galvanized and PVC coated | |
| Mesh wire | 2.7mm | |||
| 2 | 1 | 1 | Selvedge wire Dia | 3.4mm |
| 3 | 1 | 1 | Lacing wire | 2.2mm |
| 4 | 1 | 1 | Fastener | 3.0mm |
| 6 | 1 | 1 | PVC coating thickness | 0.560mm |
Gabion Bskets Application:
The gabion basket is suitable for slow river banks with high flow velocity, severe erosion, and much seepage on the bank slope.
The basket is a flexible structure and has good self-adjustment for uneven settlement.
The porosity of the shore, the gaps between the stones are good for animal habitat, plant growth, and the stone cage surface above the waterline can be planted and greened with guest bags to meet ecological considerations and safety requirements.
Gabions Basket Characteristics :
1. Weather proof under natural destroy, corrosion resistant.
2. Good permeation can prevent the damage by hydrostatic.
3. Less transport freight. It can be folded together for transport and further installation.
4. Higher strongth - No collapse even under big scope of deforming.
