Heavy Galvanised Welded Mesh Gabions , Steel Stone Cage 3.0 - 6.0 Mm Wire Diameter

Heavy Galvanised Welded Mesh Gabions , Steel Stone Cage 3.0 - 6.0 Mm Wire Diameter
Heavy Galvanised Welded Mesh Gabions , Steel Stone Cage 3.0 - 6.0 Mm Wire Diameter Heavy Galvanised Welded Mesh Gabions , Steel Stone Cage 3.0 - 6.0 Mm Wire Diameter

Large Image :  Heavy Galvanised Welded Mesh Gabions , Steel Stone Cage 3.0 - 6.0 Mm Wire Diameter

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-053
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: Negotiable
Packaging Details: Covered with plastic and then put on wooden pallet
Delivery Time: 10-15 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per week
Detailed Product Description
Material: Galvanized Wire,galfan Wire Wire Diameter: 3.0-6.0mm
Hole Size: 75*75,50*50,100*100mm Hole Shape: Square
Feature: High Strength, Long Service Life Type: Weldeding
Applications: Erosion Control Systems
High Light:

gabion rock wall cages

,

gabion planter box

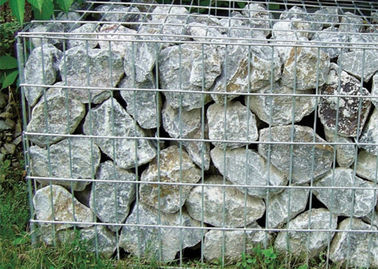

Heavy galvanized welded mesh gabion baskets / steel welded-mesh gabions



Product Description:

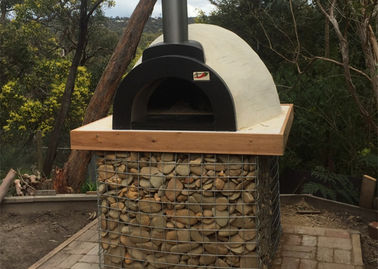

Welded wire mesh gabion basket with strong structure is suitable for mountainous country, some places where there need landslide control, it can be used for bridge protection, gabion retaining wall, slope protection, water conservancy, gabion wall for decoration and privacy, welded mesh gabions can also used for natural landscape. If there is a small pond in your courtyard, you will have a unique and beautiful scenery when the pond is surrounded by the stainless steel welded gabion basket that fulled with pretty little stone. Further more, welded mesh gabion stone cage can also used for noise barrier, separating the road and residential district. Gabion's function decide it should be rust resistance, corrosion resistance, good strength and toughness, all these advantage do our gabions posses precisely.





Welded Gabion specifications
Wire diameter:3.0-6.0mm
Size M Mesh size MM DiaphragmsNo. CBM
1.0*1.0*0.5 50*50 75*75 50*100 100*100 0 0.5
1.0*1.0*1.0 0 1.0
1.5*1.0*0.5 0 0.75
1.5*1.0*1.0 0 1.5
2.0*1.0*0.5 1 1.0
2.0*1.0*1.0 1 2.0
3.0*1.0*0.5 2 1.5
3.0*1.0*1.0 2 3.0
4.0*1.0*0.5 3 2.0
4.0*1.0*1.0 3 4.0
The specifications can be customized.



Standard size



• 2m x 1m x 1m
• 2m x 1m x 0.5m
• 1m x 1m x 1m
• 1m x 1m x 0.5m
• 1.0m x 0.5m x 0.5m
• 0.5m x 0.5m x 0.5m
• 3m x 1m x 1m
• 3m x 1m x 0.5m



welded mesh Gabion baskets wire as buyer's requirement.



How to install welded gabion box:



After checking you have all the components, open out the mesh panels.

Lift the side panels into vertical position and join by feeding the correct length of helical formed spiral into the corner, using a rotating action, until the helical is fully engaged.



When the helical is fully engaged, the formed end should lock in place.



All panel joints (vertical joints) are formed by assembling to the adjacent panel. Each joint is retained with one helical.



Repeat the filling and stiffener wire installation until the gabion is full and then close the lid by joining with the correct helical while ensuring the top mesh bears down on the rock fill.



Applications:



• Retaining wall structures.

• Decorative fence walls.

• Prevention of current scour and erosion control.

• Bridge protection.

• Hydraulic structures, dams and culverts.

• Embankment protection.

• Rockfall prevention and soil erosion protection.

• Landscaping.



Packing details



Packing: In pallet or in bundle, put in wooden case or cartons,as buyer's requirement.
