Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 2.0-4.0mm | Hole Size: | 60*80,80*100mm Etc |
|---|---|---|---|
| Surface: | Galvanized Or Pvc Coated | Application: | Stabilized Soil Retaining Structures |
| Material: | Galvanized Wire | Feature: | Low Cost |
| High Light: | weld mesh gabion baskets,gabion wire mesh boxes |
||

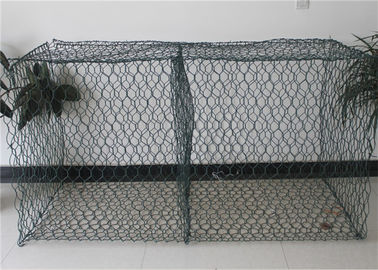

Double twisted galvanized metal gabion basket / pvc coated gabions
Product Description:
Gabion Basket is a double twisted gabion wire mesh of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, the diaphragm gives strength to the container to retain its original shape, and filled with stone at the project site to form flexible, permeable, monolithic structures , Selvedge / Edge wire which is a thicker and heavier wire is used to reinforce the edges and transverse diaphragm. It gives greater rigidity and shape to the Gabion Basket.
The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm -1mm thick PVC Coating.
| Gabion Basket Sizes | ||||
|
Length m |
Width m |
Height m |
Number of Cells |
Volume m³ |
| 2.0 | 1.0 | 1.0 | 2.0 | 2.0 |
| 3.0 | 1.0 | 1.0 | 3.0 | 3.0 |
| 4.0 | 1.0 | 1.0 | 4.0 | 4.0 |
| 2.0 | 1.0 | 0.5 | 2.0 | 1.0 |
| 3.0 | 1.0 | 0.5 | 3.0 | 1.5 |
| 4.0 | 1.0 | 0.5 | 4.0 | 2.0 |
| 2.0 | 1.0 | 0.3 | 2.0 | 0.6 |
| 3.0 | 1.0 | 0.3 | 3.0 | 0.9 |
| 4.0 | 1.0 | 0.3 | 4.0 | 1.2 |
Gabion baskets applications:
Gabion basket can used for many projects, such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
Packing & Delivery:
Packing Details: pallet or in bundle, as buyer's requirement.
Delivery Details: 15-20 Days after received the deposit by TT, according to buyer's quantity.
Tell us the gabion basket length, height, width, and used for retaining wall, garden wall, erosion control, flood protection etc, We will then get back to you with the list of gabion baskets needed to build the wall, costings including delivery.
Contact Person: Glory
Tel: 15631172813
