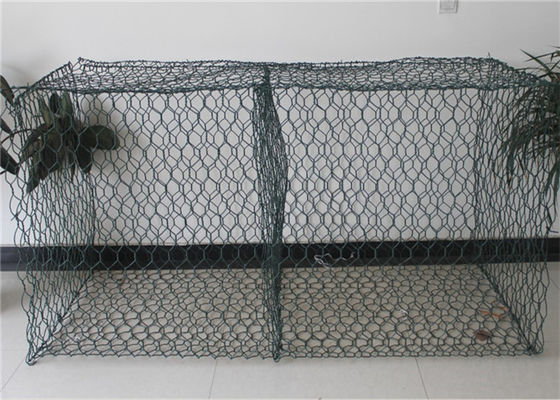

Hexagonal Shape Gabion Rock Mattresses , Plastic Coated Wire Baskets

Hexagonal Shape Gabion Rock Mattresses , Plastic Coated Wire Baskets
Hexagonal Shape Gabion Rock Mattresses , Plastic Coated Wire Baskets Hexagonal Shape Gabion Rock Mattresses , Plastic Coated Wire Baskets

Large Image :  Hexagonal Shape Gabion Rock Mattresses , Plastic Coated Wire Baskets

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-084
Payment & Shipping Terms:
Minimum Order Quantity: 200 sets
Price: Negotiable
Packaging Details: Covered with plastic and the put on wooden pallet
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets per week
Detailed Product Description
Wire Diameter: 2.0-5.0mm Hole Size: 60*80,80*100,100*120 Etc
Surface Treatment: Pvc Coated Material: Steel Wire,iron Wire Etc
Tensile Strength (n/Mm): 35-55kgs Hole Shape: Hexagonal
Color: Grey,green,black Etc
High Light:

pvc coated galvanized wire mesh

,

pvc coated gabion box

Pvc coated gabion baskets / pvc coated gabion rock mattresses



Product Description:



The galvanized steel wire and zinc-aluminum alloy steel wire can be material of both woven gabions and welded gabions. But the PVC coated steel wire is suitable for woven gabions only. When welding, the PVC coating of steel wire will be melt and falling off on the joint of wires. It is much easier corrosion and rust, so the PVC coated wires are not suitable for the welded gabions. Welded gabions can be used the steel wires or galvanized wires for fabrication and then be treated with PVC coating. In this way, the welded gabions can be also colorful and much more suitable for the decorative applications.



PVC coated gabions



Compared with other materials of gabions, the features of PVC coated gabion is colorful and ecological. The PVC coated gabion can be made into green, gray and other colors for common applications, it can also be made into orange, black and other various colors for decorative applications.


Nominal gabions basket size (m) No. of diaphragms
for reinforcing(no.)
Capacity per basket
(m3)
1.0x1.0x0.5   0.50
1.0x1.0x1.0   1.00
1.5x1.0x0.5   0.75
1.5x1.0x1.0   1.50
2.0x1.0x0.5 1 1.00
2.0x1.0x1.0 1 2.00
3.0x1.0x0.5 2 1.50
3.0x1.0x1.0 2 3.00
4.0x1.0x0.5 3 2.00
4.0x1.0x1.0 3 4.00



If you want use the PVC coated gabion in retaining wall, channel linings and slope protection applications, you may need the higher gabions, you can choose the PVC coated gabion box, which has maximum 1.5 meter height. If you need higher, just pile the 1 meter height gabions up for protection.



If you need more flexible PVC coated gabions to be used in coastal protection, river bank protection and other project, which need the lower gabions, you can choose the PVC coated gabion mattress. The maximum height of gabion mattress is 0.5 meter and minimum height can be 0.17 m. It is more flexible and easy to operating during using.



Installation:



Gabions should be positioned as required and adjacent units connected. Once in position, gabion units should be stretched taught to provide a neat straight alignment and where a high standard of rock facing is required to the gabions, additional formwork may be used on the face of the cage to provide an even straighter, neater finish.



The lid of the gabion that remains open during the filling process should be folded back out of the way whilst filling.



Rock should them be machine placed into the gabion unit to about one third height of a typical 1m high cage. Laborers should then hand position the rock against the front face of the cage to ensure a neat, tightly packed finish.



Lastly, the gabion lid is pulled over into position on top of the rock and is laced closed to the perimeter of the gabion cage and to each of the vertical partitions/diaphragms within the gabion cage.



PVC Coated Gabions and rock mattresses



PVC coated gabion has a rigid and solid structure, which can be double twisted and triple twisted. Double twisted structure is most widely used structure, which is solid enough for common protective applications. In some harsh conditions projects, such as flood control, coastal protection, channeling lining and other projects, the double twisted structure can not satisfy the strength requirements, so you can choose the triple twisted PVC coated gabion. Triple twisted structure makes the gabion a higher strength and stability structure. The high strength can resist the high impact from flood, sea water and other external forces.



Durability
Our PVC coated wire gabions and mattresses are particularly well suited for an extended life in harsh and corrosive environments.



Strength and flexibility
rock-mattresses, and rock fall netting are constructed from double-twist hexagonal woven mesh. This provides inherent strength and flexibility. Also, if a wire is cut or broken the mesh cannot "unravel".



Porosity
Gabion and rock-mattress structures are porous to prevent build up of hydrostatic pressure and are able to withstand differential settlement.
