Product Details:
Payment & Shipping Terms:
|
| Type: | Woven Wire Mesh | Material: | Galvanized Wire,pvc Coated Wire |
|---|---|---|---|
| Sample: | Available | Aperture: | 60*80mm Etc |
| Wire Gauge: | 2.0-4.0mm | Color: | Silver,green,grey,bule,black Etc. |
| High Light: | galvanized wall basket,welded gabion box |
||

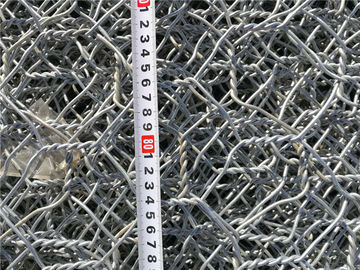

Flexible wire mesh basket / hexagonal gabion box gabion mattress
Steel wire Gabions are factory manufactured / fabricated flexible wire mesh baskets. Factory fabricated boxes, with diaphragms at 1m. Supplied at site in collapsible form Filled with stones to form variety of monolithic structures Gabion boxes -1 m height, Gabion mattresses – 0.17 m to 0.6 m thick.
Properties of the wire:
Soft annealed, low carbon content mild steel provided with heavy coating of Zinc as per EN 10244-2 / ASTM A 641, In aggressive environments, 0.5 mm thick PVC Coating is also provided.PVC coating is UV stabilised and complies with ASTM A 975.
Gabions for Retaining walls / Mass gravity walls / Landslide mitigation projects:
Gabion retaining walls are mass gravity retaining structures, constructed with boulder filled Gabion boxes to retain the soil mass laterally.Using a lacing technique, Gabions are tied to adjacent Gabions to form a monolithic structure throughout the wall
Advantages:
Durability
Strength
Flexibility
Permeability
Monolithicity
Eco-friendliness
Cost effectiveness
| Length (m) | Width (m) | Height (m) | Spacer number | Volume (m2) | Tolerance range |
| 2.0 | 1.0 | 0.15---0.3 | 1 | 0.3~0.6 | Length :±/-3% Width :±/-5% Height :±/-5% |
| 3.0 | 1.0 | 0.15---0.3 | 2 | 0.45~0.9 | |
| 4.0 | 1.0 | 0.15---0.3 | 3 | 0.6~1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 1.5 | 1.0 | 1.0 | 0 | 1.5 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 |
The size and specifications can be product according to buyer's requirement.
