Product Details:
Payment & Shipping Terms:
|
Material: | Galvanized Wire,galfan Wire | Wire Diameter: | 3.0mm-6.0mm |
---|---|---|---|
Hole Size: | 50*50,75*75,50*100,100*100mm Etc | Hole Shape: | Square |
Surface Treatment: | Heavy Zinc Coated | Feature: | Easy To Install,high Strength |
Type: | Welded Mesh Gabions | Applications: | Garden Wall Design |
Highlight: | garden gabion baskets,gabion stone fence |

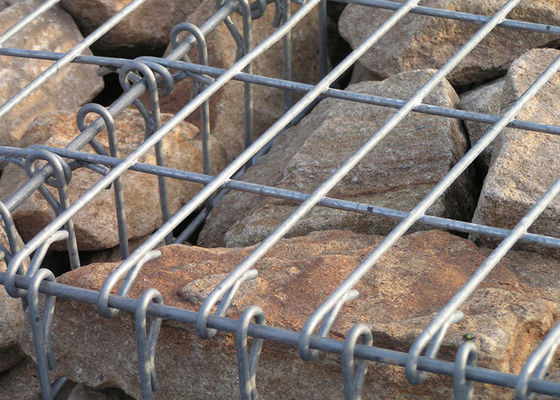

Welded mesh gabion wall design / galvanized welded gabion for decor
Product Description:
The gabion box are usually made of different parts of the welded wire mesh panels.The welded mesh panel can be made of various corrosive resistant materials ,such as galvanized wire and PVC coated galvanized wire.After receiving these welded mesh panel, assembled with spirals, locking pins and stiffener, then filled with stones.The interior of the gabion basket is usually filled with some local stone or crushed concrete.Because these materials are relatively inexpensive, they can effectively save construction costs.
1. Surface treatment: electro galvanized, hot-dipped galvanized, pvc coated, stainless steel
2. Wire diameter: 3.0--6.0mm
3. Mesh size/opening: 50x50mm, 75x75mm, 100x50mm, 100x100mm
4. Zinc coating: 40-290g/mm2
Welded Gabion specifications | |||
Wire diameter:3.0-6.0mm | |||
Size M | Mesh size MM | DiaphragmsNo. | CBM |
1.0*1.0*0.5 | 50*50 75*75 50*100 100*100 | 0 | 0.5 |
1.0*1.0*1.0 | 0 | 1.0 | |
1.5*1.0*0.5 | 0 | 0.75 | |
1.5*1.0*1.0 | 0 | 1.5 | |
2.0*1.0*0.5 | 1 | 1.0 | |
2.0*1.0*1.0 | 1 | 2.0 | |
3.0*1.0*0.5 | 2 | 1.5 | |
3.0*1.0*1.0 | 2 | 3.0 | |
4.0*1.0*0.5 | 3 | 2.0 | |
4.0*1.0*1.0 | 3 | 4.0 | |
The specifications can be customized. |
Welded gabion baskets are popular with economical and simple installation performance.
The advantages of gabion as reinforcement works
A modular solution for simple installation and low environmental impact
The porosity between the fillers does not hinder the flow of water
Can be easily and efficiently integrated with natural vegetation
Various specs for choice.
Different materials for different budget.
Suitable for any harsh environments.
How to install welded gabion box
Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
Step 4. Gabion box filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up
Applications:
Welded gabion baskets can control soil erosion well and provide a neat and very pleasing appearance. So welded gabion baskets are popularly used in road protection and landscape construction.
