Product Details:
Payment & Shipping Terms:
|
| Material: | Zinc-aluminum Wire | Feature: | Anti-corrosive |
|---|---|---|---|
| Color: | Silver | Hole Shape: | Square, Rectangular |
| Wire Gauge: | 3-6mm | Surface Treatment: | Galfan Coated |
| Aperture: | 3 | Usage: | Flood Control Retaining Wall |
| Applications: | Gabion Walls, Gabion Fence | Length: | 1m-4m Or As Required |

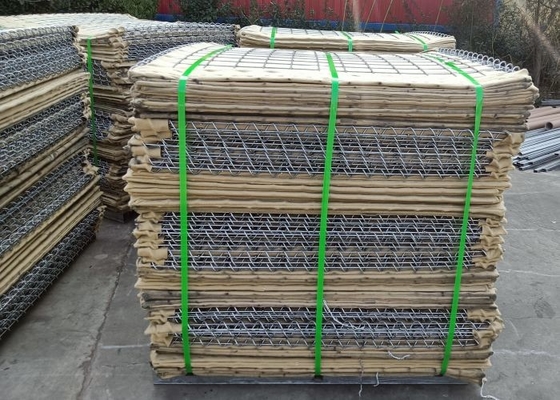

| Packing: | Pallet Or Bundle | Size: | 1*1*0.5,1*1*1,2*1*1,3*1*1m Etc. |
| Surface Treatment: | Hot-dipped Galvanized | Tensile Strength: | 350-500N/mm2 |
| Type: | Welded Mesh | Wire Diameter: | 3-5mm |
| Hole Shape: | Square | ||
| High Light: | wire cages rock retaining walls,building gabion baskets |
||
Galfan coated stone box retaining wall system / Gabion gravity walls
Product Description:
Zinc-aluminum alloy is called Galfan in foreign, zinc coating is high zinc plus aluminum. Aluminum content is 5-10%, zinc content is 90-95% in Galfan. The meaning of Galfan is "an extraordinary galvanized". Corrosion resistance of the products is about 2-3 times that of ordinary galvanized. Currently, Galfan galvanized wire mainly used in gabion basket.
Gabion baskets act as retaining walls and erosion control in civil works. These baskets are filled with stone to present flexible, monolithic structures. The double-twisted-wire-mesh has built-in, non-raveling effect that prevent accidental damage from spreading. Gabion baskets also permit the preservation or restoration of the environment.
Specifications:
1.Material:galvanized wire,Galfan wire,PVC Coated
2.wire diameter3.0-6.0mm
3.Mesh Size: 50mm*50mm, 75mm*75mm, 100mm*100.mm, 100mm*50mm
4.Strength tensile:380-550mpa
5.Zinc coating:3mm diameter 255 g/m2, 4mm diameter = 275 g/m2 ; 5mm diameter = 280 g/m2.
| Length (m) | Width (m) | Height (m) | Spacer number | Volume (m2) | Tolerance range |
| 2.0 | 1.0 | 0.15---0.3 | 1 | 0.3~0.6 | Length :±/-3% Width :±/-5% Height :±/-5% |
| 3.0 | 1.0 | 0.15---0.3 | 2 | 0.45~0.9 | |
| 4.0 | 1.0 | 0.15---0.3 | 3 | 0.6~1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 1.5 | 1.0 | 1.0 | 0 | 1.5 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 |
Gabion Basket vs Concrete Blocks to Build Retaining Walls
Cost difference – Gabion baskets are more competitive to build
Life span – Concrete blocks have far greater life span
Speed of construction – Concrete blocks can be built 5 x faster on site
Cost Difference
Applications:
.Retaining wall structures
.River and canal training works
.Erosion and scour protection ,roadway protection
.Hydraulic structures,dams and culverts
.Rockfall and soil erosion protection
Company Introduction
Founded in 2014, Hebei Nova Metal Wire Mesh Products Co., Ltd has been a professional
manufacturer of gabion products in China. Hereare a few things about us.
• Our gabion products are ISO certified.
• Our production ability can reach 30 000m2/d.
• We are a 2 factory corporation with a total of more than 30 weaving machines.
• Our markets are mainly in the middle east, Asia, Europe and America and are expanding.
• Our gabion products have passed the test of SGS according to test method of both ASTM975 and EN 10223 standard.
The entire team at Nova metal wire mesh is dedicated to provide excellent service, qualified products and competitive pricing. Nova metal wire mesh is happy to be of service to you at any time.
