Product Details:
Payment & Shipping Terms:
|
| Material: | Galfan Coated Wire | Color: | Silver |
|---|---|---|---|
| Hole Shape: | Square | Type: | Welded Mesh |
| Wire Gauge: | 3-6mm | Aperture: | 50x50mm 50x100mm 75mm*75mm |
| High Light: | building gabion baskets,gabion basket fence |
||

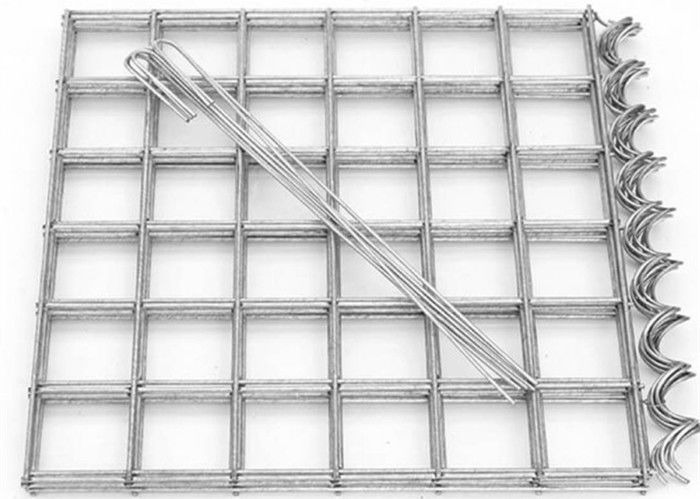

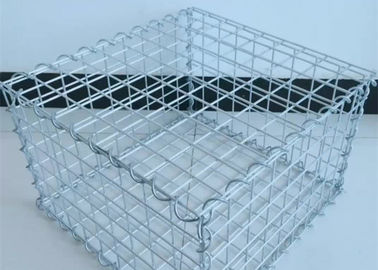

Galfan Gabions / Welded mesh gabions for coastal erosion protection
Product Description:
Galfan Gabbions.
Galfan gabion gets its name from its wire material: a kind of heavy Galfan (zinc-5% aluminum alloy) soft tempered steel . Compared with traditional galvanized steel gabions with pure zinc coating, Galfan gabion features a heavy zinc – aluminum coating layer which enables an excellent corrosion resistance. The corrosion resistance of Galfan gabion doubles that of traditional pure zinc plating. use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present.
Typical Applications:
Channel Linings
Drop Structures & Weirs
Gravity Walls
Landscaping & Architectural Features
Rockfall Mitigation
Soil Stabilization
| Length (m) | Width (m) | Height (m) | Spacer number | Volume (m2) | Tolerance range |
| 2.0 | 1.0 | 0.15---0.3 | 1 | 0.3~0.6 | Length :±/-3% Width :±/-5% Height :±/-5% |
| 3.0 | 1.0 | 0.15---0.3 | 2 | 0.45~0.9 | |
| 4.0 | 1.0 | 0.15---0.3 | 3 | 0.6~1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 1.5 | 1.0 | 1.0 | 0 | 1.5 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 |
Gabion Size: Length from 1 m up to 4 m, Width from 0,5 m up to 2 m, Height from 0,5 m up to 1 m
