Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 2.0-4.0mm | Hole Size: | 60*80,80*100mm Etc |
|---|---|---|---|
| Feature: | Light Weight,easy To Transport | Size: | 1*1*1,2*1*1,3*1*1m |
| Surface: | Galvanized Or Pvc Coated | Application: | Soil Erosion Protection |
| Name: | Hexagonal Galvanized Gabion Boxes And Mattress For Erosion Control | Color: | Green,black, Grey, Sliver Etc |
| High Light: | weld mesh gabion baskets,gabion wire mesh boxes |
||

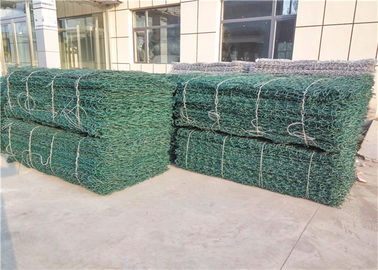

Hexagonal Galvanized Gabion Boxes And Mattress For Erosion Control

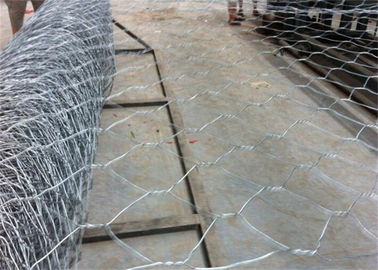

Gabion is basket or mesh roll made of twisted hexagonal wire Mesh, Gabion box is filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings and weirs for erosion control projects.
Gabion boxes , uniformly partitioned, are wire made containers of various sizes. It is interconnected with other similar containers and filled with stones at the site of use to form flexible, permeable, monolithic structures such as retaining walls, sea walls, channel linings, revetments and weirs for earth retention. In order to strengthen the boxes, all the edges of structure are selvedged with wire of greater diameter.
Galvanized gabion baskets
The galvanized gabion baskets is made of high-quality low-carbon steel wire , with tensile strength of steel wire more than 380N/mm2, wire diameter up to 2.0mm~4.0mm. The surface is protected by hot dipped galvanized zinc layer. The galvanization amount can be customized, our heavy galvanized zinc amount can reach 240-300g/m2.
PVC Coated Gabion baskets
The plastic pvc coated gabion basket is coated with a PVC protective layer on the surface of the galvanized iron wire. This layer of PVC protective layer will greatly increase the service life of the net. With different PVC colors, it can naturally compatible with the surrounding environment.
| Size | Notes | Tolerance | |||
| Length(m) | Width(m) | Height(m) | Cell Number | Volume(m³) | ±3% |
| 2.00 | 1.00 | 0.30 | 1 | 0.60 | |
| 3.00 | 1.00 | 0.30 | 2 | 0.90 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | ±5% |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
Gabion box and Gabion mattress can be designed in different specification:
1. Economical, It only needs to load a stone cage that can be sealed.
2. Simple construction. Special skills is hardly needed.
3. A strong withstand natural damage and influence of adverse climate. It can also resist errosion.
4. Be able to stand large-scale deformation, and will not collapse.
5. Cage rock crevice between the mud can be used to plant production which enables the surrounding natural environment to melt together.
6. Has good permeability to prevent static fluid from causing damage.
7. Save transportation costs. Can be folded up and assembled on site.
Gabion mesh box applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.
