Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/ Reverse Dutch Woven Wire Mesh Filter Screen

Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen
Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen

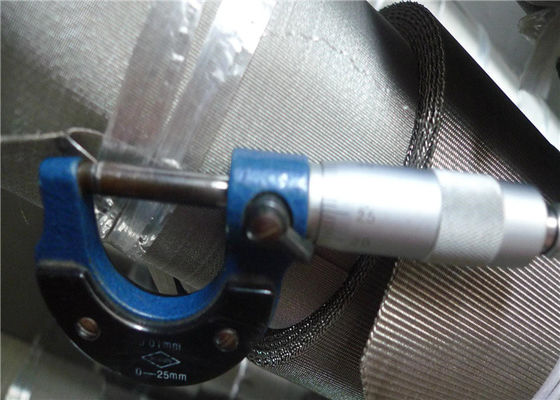

Large Image :  Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/ Reverse Dutch Woven Wire Mesh Filter Screen

Product Details:
Place of Origin: CHINA
Brand Name: NOVA
Payment & Shipping Terms:
Minimum Order Quantity: 1 rolls/roll
Price: $30.00/Roll
Packaging Details: Stainless Steel Reverse dutch woven wire mesh filter mesh screen Waterproof paper inside,plywood case outside
Delivery Time: Quantity(Rolls) 1 - 50 >50 Est. Time(days) 5 To be negotiated
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Roll/Rolls per Month Stainless Steel Reverse dutch woven wire mesh filter mesh screen
Detailed Product Description
Material: Stainless Steel Width: Usually 127mm, Or Customized
Wire Diameter: 0.02mm-0.5mm Feature: High Strength,corrosion Resistant,heat Resistant
Shape: In Roll Package: Plywood Case
Application: Filtering Of Plastic Wire Drawing Bench Weave Style: Dutch Weave
Sample: Free Certificated: ISO-9001:2008
High Light:

0.5mm Dutch Woven Wire Mesh

,

ISO9001 Dutch Woven Wire Mesh

,

Extruder Dutch Woven Wire Mesh

     stainless steel reverse dutch woven wire mesh filter screen for extruder/ reverse dutch woven wire mesh filter screen



Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen 0



There are two Weave types of reverse dutch weave mesh :

  1. reverse Plain dutch weave mesh
    it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance
  2. reverse Dutch Weave but Twilled Weave mesh:each weft wire goes through two warp wires alternatively.The Reverse Dutch Twill Weave allows to use wires with larger diameters and gives better stability and strenght to the weft.

Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen 1

Specifications of Reverse Dutch Weave Wire Cloth / Wire Net :

Mesh/inch Wire Dia.(mm) Width(mm) Length/Roll(m)
72/15 0.45/0.55 97---400 10/20
120/15 0.35/0.45 97---400 10/20
132/17 0.32/0.45 97---400 10/20
150/17 0.3/0.45 97---400 10/20
152/24 0.27/0.4 97---400 10/20
152/30 0.27/0.4 97-400 10/20
170/17 0.27/0.45 97-400 10/20
180/18 0.27/0.45 97-400 10/20
200/40 0.17/0.27 97---400 10/20
260/40 0.15/0.25 97---400 10/20



Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen 2

Weave Type
Mesh/Inch
Wire diameter
(inch)
Absolute Filtration
Finess µm
Nominal Filtration
Finess µm
Plain Dutch Weave
Wire Mesh
8 × 85 to 80 × 400
0.014'' × 0.0126'' to
0.0049'' × 0.0028''
318-340 to 43-48
250-255 to 35-40
Twill Duntch Weave
Wire Mesh
20 × 250 to 500 ×3200
0.0098'' × 0.0079'' to
0.0015'' × 0.0010''
110-120 to 8-9
98-105 to 2-3

Application of Reverse Dutch Weave Wire Mesh:

used in auto screen changers employed by the extrusion processes of the plastics industry,such as plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.

Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen 3

Feature of Reverse Dutch Weave Wire Mesh:

  • Resistant to abrasion
  • Durability
  • Sturdiness
  • Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.
  • High strength, good tensiontoughness and abrasion performance in use.

Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen 4

Packing and shipping of Reverse Dutch Weave Wire Mesh:



Reverse Dutch Weave Wire Mesh is packed with paper,then in plywood case to make sure its safty when shipping.

inside with paper tube, outside with plastic film, then into the cartons, or as per your requirement

Stainless Steel Reverse Dutch Woven Wire Mesh Filter Screen For Extruder/  Reverse Dutch Woven Wire Mesh Filter Screen 5

Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered a patent,

Q2. How long is your delivery time?
A: Generally it's 3-5 days if the goods are in stock or it's 7-10 days if the goods are not in stock and depending on quantity.

Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
