Defensive 76.2x76.2mm Defensive itary Bastion Wall Hot Dipped Galvanized

Large Image : Defensive 76.2x76.2mm Defensive itary Bastion Wall Hot Dipped Galvanized

Product Details:

Place of Origin:	CHINA
Brand Name:	NOVA
Certification:	ISO-9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	100 Set/Sets
Price:	1-50US$/m2
Packaging Details:	dozens of sets in flat bundles, or packed on pallets , or as customs requirements
Delivery Time:	Quantity(Sets) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Set/Sets per Month

Contact Now

Detailed Product Description

Material:	Galvanized Iron Wire	Panels Size:	2.21* 2.13m, 1.37* 1.06m, 0.61* 0.61m, 1.37* 1.22m, Etc
Hole Size:	5050mm 7575mm,76.276.2mm 8080mm 100*100mm Etc	Finish:	Hot Dipped Galvanized After /before Welding, Etc
Wire Diameter:	3.0mm- 6.0mm	Color:	Earthy Yellow, Green, Gray, Etc.
General Purpose:	Itary Defensive,Flood Control And Disaster Relief	Zinc Coated:	40-60g/m2, 240-260g/m2
Highlight:	76.2x76.2mm itary , hot dipped galvanized itary , 76.2x76.2mm bastion wall

itary Welded Gabion Barrier used Defensive retaining wall barriers / itary welded barriers used Defensive barriers

Mesh wire diameter	3mm,4mm,5mm,6mm etc
Spring wire diameter	3mm,4mm,5mm,6mm etc
Mesh size	5050mm,50100mm,37.5100mm,6060mm,6565mm,7070mm,7676mm,8080mm or as your request.
Panel Size	0.610.61m,11m,1.21.2m,1.51.5m,1.52m,22m, 2.21*2.13m or as your request.
Finish	Electro galvanized after welded Hot dipped galvanized welded Galfan coated after welded
Geotextile	Heavy duty non-woven polypropylene
Packing	Wrapped with shrink film or packed in pallet

Defensive 76.2x76.2mm Defensive itary Bastion Wall Hot Dipped Galvanized 0

Product Item standards	Height	Width	Length	Cells
QG 1	54''(1.37m)	42''(1.06m)	32'9''(10m)	14+15 cells
QG 2	24''(0.61m)	24''(0.61m)	4'(1.22m)	2 cells
QG 3	39''(1.00m)	39''(1.00m)	32'9''(10m)	2*5 cells
QG 4	39''(1.00m)	60''(1.52m)	32'9''(10m)	2*5 cells
QG 5	24''(0.61m)	24''(0.61m)	10'(3.05m)	5 cells
QG 6	66''(1.68m)	24''(0.61m)	10'(3.05m)	5 cells
QG 7	87''(2.21m)	84''(2.13m)	91'(27.74m)	24+15 cells
QG 8	54''(1.37m)	48''(1.22m)	32'9''(9.14m)	14+15 cells
QG 9	39'(1.00m)	30''(0.76m)	30'(9.14m)	2*6 cells
QG 10	87''(2.21m)	60''(1.52m)	100'(30.5m)	4*5 cells
QG 11	48''(1.22m)	12''(0.3m)	4'(1.22m)	4 cells
QG 12	84''(2.13m)	42''(1.06m)	108'(33m)	6*5 cells
QG 19	108''(2.74m)	42''(1.06m)	10'5''(3.18m)	3 cells

Defensive 76.2x76.2mm Defensive itary Bastion Wall Hot Dipped Galvanized 1

The application:

The strength,flexibility and economy of itary barrier/bastion lead it to a wide variety of applications

including perimeter security and defensing walls,equipment revetments,explosive and contraband search areas,

personal and material bunkers,observation points,defensive firing positions,flood control,emergency flood deployment,

erosion control,civil engineering etc.

Defensive 76.2x76.2mm Defensive itary Bastion Wall Hot Dipped Galvanized 2

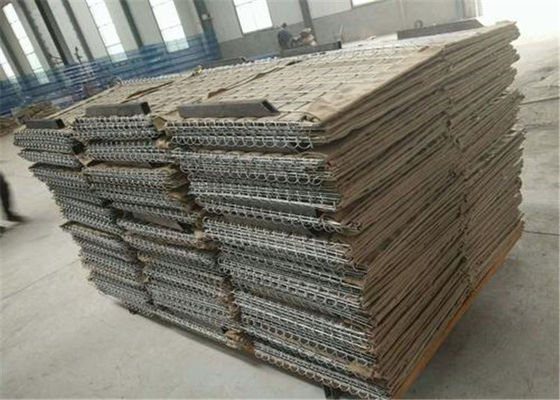

Defensive Sand Filled Barriers common package:
1. several pieces in bundle+pallet+plastic film.
2. one set/carton, then on pallet.
3. other packing according to buyer's requirement.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to

quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
