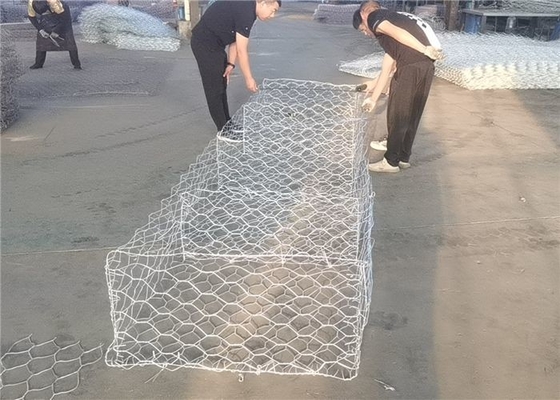

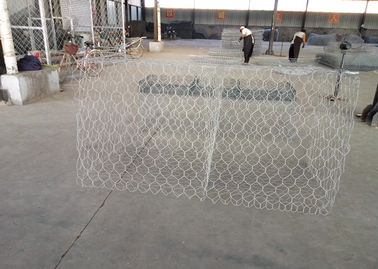

6*8, 8*10,10*12 Stone Filled Metal Wire Gabion Cage For Soil Or Riverbank Erosion Protection
Metal Gabion baskets and Mattresses are normally used for Civil works, channels, river & Streamworks, and earth retention like soil reinforcement, river training, erosion control, and fascia systems, all with or without extra organic coating, and all coated with zinc, or zinc-aluminum alloy, or non-ferrous advanced metallic materials.
Additionally, they can be utilized in other load-bearing and non-load-bearing construction projects, such as those involving architectural cladding, free-standing walls and fences, sound barriers, and noise reduction measures.
In the application in geotechnical structures, metal gabion baskets replace and redistribute all the transverse stress and deformation of gabion filling (stacked stone and/or aggregate ballast) and retained earthwork.
The most popular hole size of Metal Gabion baskets for erosion control is 8*10 type and 10*12 type hexagonal mesh.
Material and surface treatment for anti-corrosion:
The material of metal gabion baskets is Q195 Soft temper Carbon steel wire.
Surface treatment for anti-corrosion has 4 types:
a- Zinc-coated wire.
b- Coated with Galfan (Zn-5A1-MM or Zn-10A1-MM).
c- Zinc-coated and overcoated with PVC.
d- Galfan (Zn-5A1-MM or Zn-10A1-MM) coated overcoated with PVC.
| Typical Sizes of Gabion boxes |
| Length (m) |
Width (m) |
Height (m) |
Cells |
| 2 |
1 |
0.5 |
2 |
| 3 |
1 |
0.5 |
3 |
| 4 |
1 |
0.5 |
4 |
| 1.5 |
1 |
1 |
1 |
| 2 |
1 |
1 |
2 |
| 3 |
1 |
1 |
3 |
| 4 |
1 |
1 |
4 |
Custom gabion box sizes are acceptable, contact us directly if you need custom-made gabion products.
Typical Hole size and
| Typical Sizes and Dimensions of Gabion Baskets |
| |
|
| |
Metallic Coated |
PVC Coated |
| Mesh Type |
8 X 10 |
| Mesh Opening |
83 X 114 mm |
83 X 114 mm |
| Tolerance |
|
|
| Mesh wire diameter |
3.05 mm |
2.7 mm |
| Tolerance of OD |
+/- 0.1mm |
+/- 0.1mm |
| Selvedge wire |
3.8 mm |
3.4 mm |
| Lacing wire |
2.2 mm |
2.2 mm |
| Fasteners |
3.0 mm |
3.0 mm |
Stiffeners:
Using lacing wire |
2.2 mm |
2.2 mm |
| Preformed |
3.8 mm |
3.4 mm |
PVC coating
thickness Nominal: |
N/A |
0.50 mm |
| Minimum |
N/A |
0.38 mm |
| Minimum Weight of Zn per Unit Area of Zn coated Wire Surface |
| 2 mm wire |
214 gsm (gram per square meter) |
| 2.2 mm wire |
229 gsm |
| 2.3 mm wire |
229 gsm |
| 3.05mm wire |
259 gsm |
| 3.4 mm wire |
259 gsm |
| 3.8 mm wire |
275 gsm |
Information needed when sending us an inquiry about gabion cages/gabion baskets:
In order to get a fast quotation, the following information is needed when sending us a quote:
- Wire diameter and surface treatment, including gsm of Zn coating and with or without PVC coating.
- Color of PVC
- Hole size and tolerance.
- Box size and diaphragm numbers.
- Quantity.
- Destination port of shipping
Example: 8*10 type, 2.7/ 3.4/ 2.2mm wire with PVC coating, grey, 2*1*1, 1 diaphragm, 10000 pieces, ship to Jeddah port of Saudi
Frequency Asked Questions about Wire Mesh Metal Gabion Baskets and other applications:
Q: I'm interested in your metal gabion baskets, how do I place an order?
A: 1. First step - let us know the detailed specification of metal gabion baskets and the quantity needed, we have a standard inquiry form prepared for you, and we can send it to you if required.
2. Then, we send you a quotation sheet by email or WhatsApp.
3. After you review and accept our quotation, we can move on to the order step.
4. We book material and start production after the deposit is received. During production, we will send pictures and an updated status to you.
5. After production is finished, we will make the shipment and send the BOL to you after the balance of payment is received.
Q: What is the MOQ of the metal gabion baskets products?
A: The MOQ for metal gabion baskets is one bundle for mass-produced standard products, for custom-made metal gabion baskets, MOQ is one 20ft container loading quantity.
Q: What is your standard payment term?
A; Our payment term is flexible, our standard term is a 30% deposit, balance paid before shipment or against a copy of BOL, other payment terms are discussable, like 30% TT+70%LC.
Q: How many years can heavy Zine galvanized wire gabion baskets be used? What is the estimated working life?
A: According to EN10223, heavy Zine galvanized, class A gabion baskets can last up to 25 years in low aggressive conditions (dry conditions, like a desert, sub-arctic areas), and Zinc coated gabion class A can last more than 10 years in medium addressive condition. If want a longer life, Galfan(Zn90%Al10% alloy) is recommended. PVC and PA6 coating can extend the life significantly.

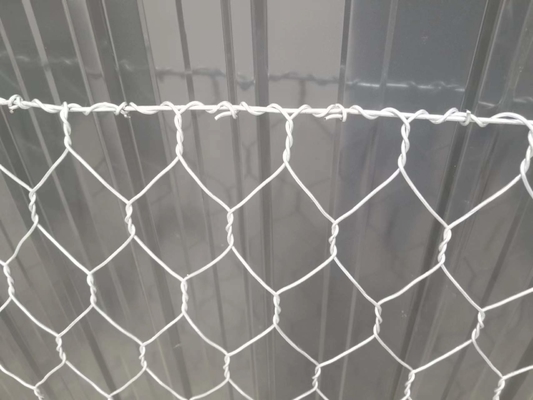

The following pictures show how to make connections by lacing wire and bracing details. For further information on installation, please contact us directly.
My Whatsapp is +8615350592434, and my email is admin@nova-wiremesh.com.

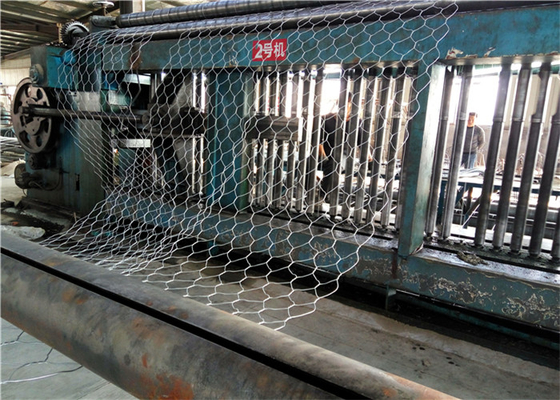

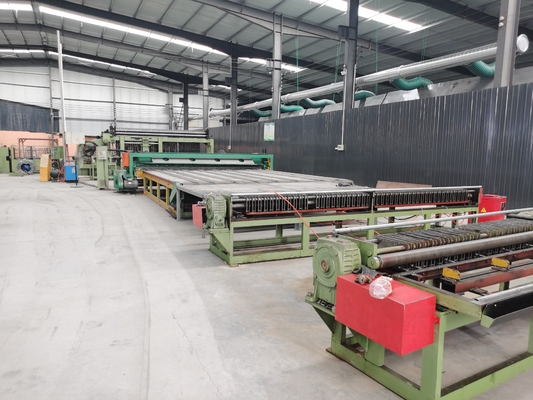

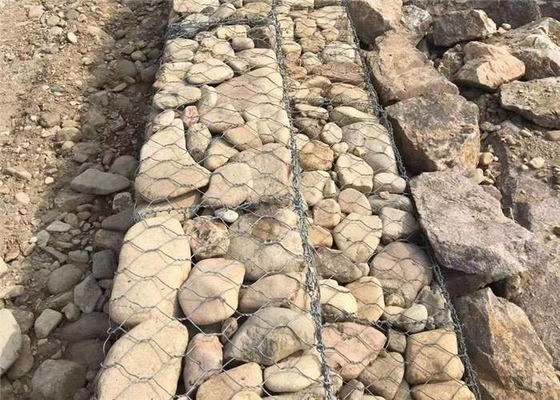

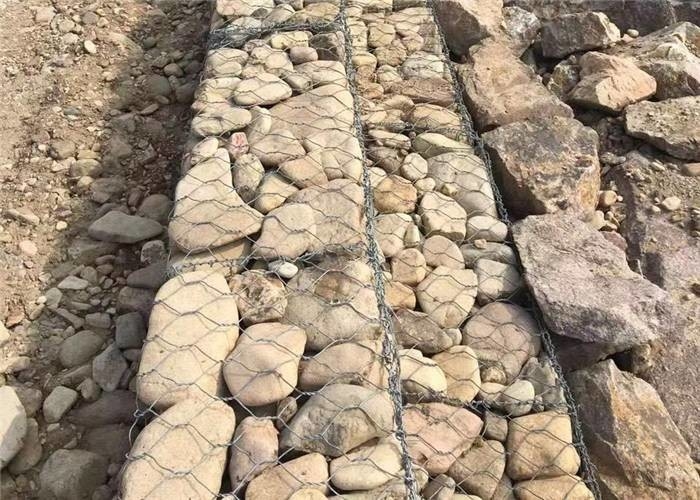

Pictures of Nova factory and projects:
