Hexagonal Double Twisted Woven Type Galfan-Coated Gabion es
Galfan is a type of steel that has a zinc-aluminum layer applied to it rather than the typical zinc layer that is applied to galvanized steel due to the higher corrosion resistance of the zinc-aluminum layer. Over the past 20 years, gabion products with a galfan coating have demonstrated increased performance in a variety of applications when compared to conventional galvanized steel.
Nova Hexagonal Double Twisted Woven Type Galfan-Coated Gabion es products make use of the most up-to-date Galfan coating and manufacturing techniques to provide a highly practical and long-lasting product that engineers can confidently use into their designs.
The most popular mesh sizes are 60*80mm, the most popular gabion modules are 3*2*0.17m,4*2*0.17m,3*2*0.23m, 4*2*0.23m, 3*2*0.3m,4*2*0.3m mattress, or 2*15m, 2*25m rockfall nettings.
| Mattresses type* |
Typical size of es |
Mesh size (mm) |
| Length |
Width |
Height |
| L |
W |
H |
| 3x2x0.17 |
3 |
2 |
0.17 |
60 x 80 |
| 4x2x0.17 |
4 |
2 |
0.17 |
60 x 80 |
| 3x2x0.23 |
3 |
2 |
0.23 |
60 x 80 |
| 4x2x0.23 |
2 |
2 |
0.23 |
60 x 80 |
| 3x2x0.3 |
3 |
2 |
0.3 |
60 x 80 |
| 4x2x0.3 |
4 |
2 |
0.3 |
60 x 80 |
| Body wire: |
| - diameter 2.2 mm plus 1 mm when PVC coated. |
| Selvedge wire: |
| - diameter 2.7 mm plus 1 mm when PVC coated. |
| Lacing wire: |
| - diameter 2.2 mm plus 1 mm when PVC coated. |

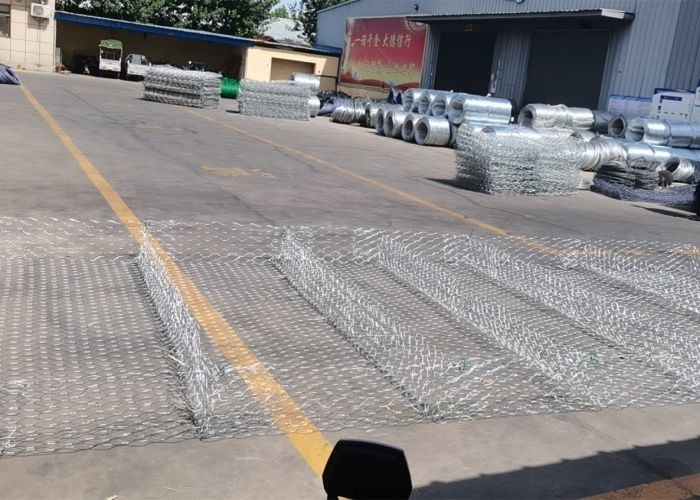

Nova workshop has been producted by 18 sets of gabion weaving machine with different hole size in our factory, which can produce most of holes depend on the customer need.
FAQs regarding Hexagonal Double Twisted Woven Galfan-coated Metal Gabion Baskets
Q1: What is the MOQ or order?
A1: For standard hole and wire size gabion baskets, our MOQ is 1 bundle(About 50 pieces). For custom made gabion products, our MOQ is one 20ft container loading.
Q2: How to order from you?
A2: 1st step, let us know the detailded specification of gabion baskets and quantity needed, we have a standard inquiry form prepared for you, we can send it to you if needed.
2nd step, we sent you a quotation sheet by email or Whatsapp.
3rd step, we book material and start production after deposit received. Will sent you pictures and updated status for production.
4th step, making the shipment and sent the BOL to you after balance of payment received.
Q3: Which port is the shipping port?
A4: The nearest port to our factory is Tianjin port (XINGANG).
Q5: How many years can Galfan coated es be used? How is the estimated working life?
According to EN10223, Galfan(Zn90%Al10% alloy) coated, class A gabion can last up to 120 years in low aggressive condition (dry condition, like desert, sub-arctic areas), and Zn95%Al5% alloy, class A can last more than 50 years in same condition. While in very high aggressive condition, Galfan(Zn95%Al5% alloy) with PVC or PA6 coating can last 120 years and Galfan(Zn90%Al10% alloy) can last more than 120 years.
In EN10223, it also says: the working life of a product depends upon its inherent durability and normal installation and maintenance. A clear distinction has to be made between the assumed economically reasonable working life for a product (also called: design working life), which underlies the assessment of durability in Technical Specifications, and the actual working life of a product in a works. The latter depends on many factors beyond the control of the producer, such as design, location of use (exposure), installation, use and maintenance. The assumed working life can thus not be interpreted as being a guarantee given by the producer.
