Product Details:
Payment & Shipping Terms:
|
Wire Diameter: | 2.0-4.0mm | Hole Size: | 60*80,80*100mm Etc |
---|---|---|---|
Feature: | Light Weight,easy To Transport | Size: | 1*1*1,2*1*1,3*1*1m |
Surface: | Galvanized Or Pvc Coated | Name: | Galvanized Gabion Stone Cages |
High Light: | weld mesh gabion baskets,gabion wire mesh boxes |

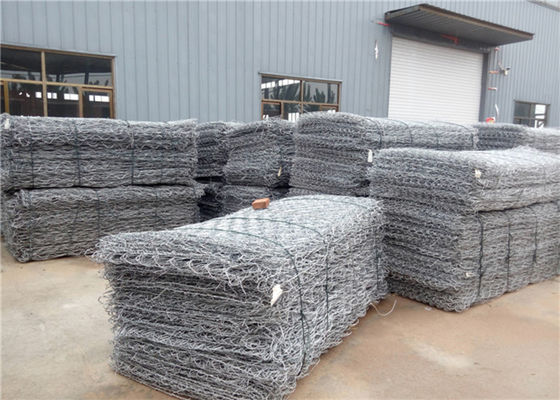

Double twisted hexagonal steel wire mesh galvanized gabion baskets
Product Description:
a) Gabions are defined as double twisted woven wire mesh box shaped baskets, of various sizes and dimensions.
b) The selvedges of the gabion baskets are the thicker perimeter and edge wires
c) Reinforcing wires are the thicker wires incorporated into the netting during
d) The internal diaphragms are the internal wire mesh partitions which divide the gabions into cells.
e) Lacing or tie wire is used to assemble and join the gabion units.
f) Connecting wires are the internal wire used to prevent the gabions from bulging.
Gabion wire mesh boxes/basket specifications
Wire diameter/mm | Mesh size /mm | Size/m | No. of diaphragms | Deviation |
2.0-4.0 |
60*80 80*100 90*110 100*120 120*150 |
1*1*0.3 | 0 | ± 5% |
1*1*0.5 | 0 | |||
1*1*1 | 0 | |||
2*1*0.3 | 1 | |||
2*1*0.5 | 1 | |||
2*1*1 | 1 | |||
3*1*0.3 | 2 | |||
3*1*0.5 | 2 | |||
3*1*1 | 2 | |||
4*1*0.3 | 3 | |||
4*1*0.5 | 3 | |||
4*1*1 | 3 | |||
2*0.5*0.5 | 1 | |||
3*0.5*0.5 | 2 | |||
Customized according to buyer's requirement. |
Gabion mesh box Feature:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Low transport freight. It can be folded together for transport and further installation.
Flexibility, no structural joints, the overall structure of scalability.
Corrosion resistance
Gabion stone cage applications:
Wire mesh gabion baskets filled with stone and used for various applications including but not limited to retaining walls, mechanically stabilized soil retaining structures, stream bank protection, slope paving, outfall structures, weirs, drop structures, etc…
Packing & Delivery:
Packing Details: pallet or in bundle, as buyer's requirement.
Delivery Details: 15-20 Days after received the deposit by TT, according to buyer's quantity.
Tell us the gabion basket length, height, width, and used for retaining wall, garden wall, erosion control, flood protection etc, We will then get back to you with the list of gabion baskets needed to build the wall, costings including delivery.
