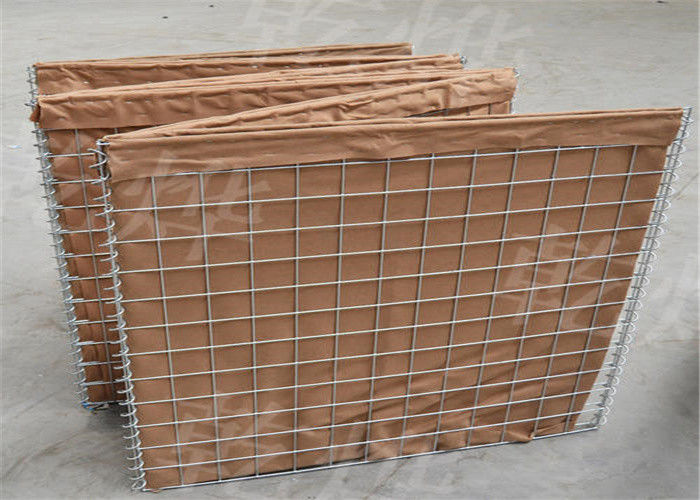

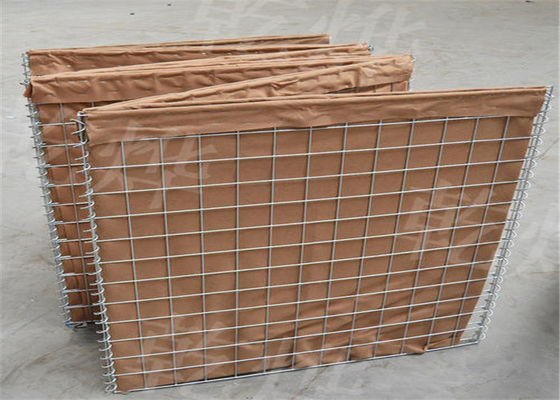

Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm

Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm
Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm

Large Image :  Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm

Product Details:
Place of Origin: CHINA
Brand Name: NOVA
Certification: ISO-9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 100 Set/Sets
Price: 1-50US$/m2
Packaging Details: dozens of sets in flat bundles, or packed on pallets , or as customs requirements
Delivery Time: Quantity(Sets) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Set/Sets per Month
Contact Now

Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm

Description
Material: Galvanized Iron Wire Panels Size: 2.21* 2.13m, 1.37* 1.06m, 0.61* 0.61m, 1.37* 1.22m, Etc
Hole Size: 50*50mm 75*75mm,76.2*76.2mm 80*80mm 100*100mm Etc Finish: Hot Dipped Galvanized After /before Welding, Etc
Wire Diameter: 3.0mm- 6.0mm Color: Earthy Yellow, Green, Gray, Etc.
General Purpose: Itary Defensive,Flood Control And Disaster Relief Zinc Coated: 40-60g/m2, 240-260g/m2
Highlight:

galvanized iron bastion barrier system

,

3.0mm bastion barrier system

,

50x50mm itary barriers

    welded Defensive barriers galvanized itary sand wall Defensive barrier/Welded Mesh Gabion Defensive Barrier Welded Defensive Bast





Mesh wire diameter 3mm,4mm,5mm,6mm etc
Spring wire diameter 3mm,4mm,5mm,6mm etc
Mesh size 50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your request.
Panel Size 0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request.
Finish

Electro galvanized after welded

Hot dipped galvanized welded

Galfan coated after welded
Geotextile Heavy duty non-woven polypropylene
Packing Wrapped with shrink film or packed in pallet

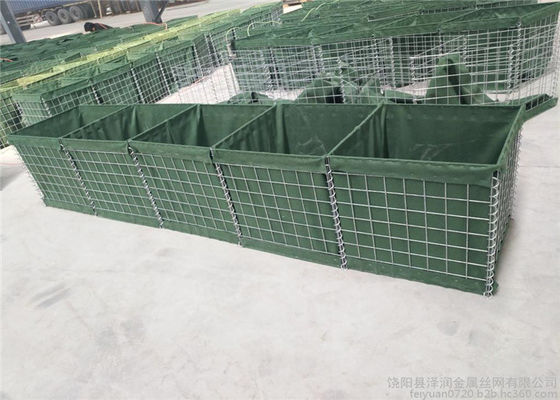

Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm 0

Product Item standards
Height
Width
Length
Cells
QG DB1
54''(1.37m)
42''(1.06m)
32'9''(10m)
1*4+1*5 cells
QG DB2
24''(0.61m)
24''(0.61m)
4'(1.22m)
2 cells
QG DB3
39''(1.00m)
39''(1.00m)
32'9''(10m)
2*5 cells
QG DB4
39''(1.00m)
60''(1.52m)
32'9''(10m)
2*5 cells
QG DB5
24''(0.61m)
24''(0.61m)
10'(3.05m)
5 cells
QG DB6
66''(1.68m)
24''(0.61m)
10'(3.05m)
5 cells
QG DB7
87''(2.21m)
84''(2.13m)
91'(27.74m)
2*4+1*5 cells
QG DB8
54''(1.37m)
48''(1.22m)
32'9''(9.14m)
1*4+1*5 cells
QG DB9
39'(1.00m)
30''(0.76m)
30'(9.14m)
2*6 cells
QG DB10
87''(2.21m)
60''(1.52m)
100'(30.5m)
4*5 cells
QG DB11
48''(1.22m)
12''(0.3m)
4'(1.22m)
4 cells
QG DB12
84''(2.13m)
42''(1.06m)
108'(33m)
6*5 cells
QG DB19
108''(2.74m)
42''(1.06m)
10'5''(3.18m)
3 cells

Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm 1

Application:
itary protection
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area

Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm 2

Packaging & Shipping

Galvanized Iron Wire Defensive Bastion Barrier System 3.0mm 50x50mm 3
