Product Details:
Payment & Shipping Terms:
|
Material: | Galvanized Wire | Wire Diameter: | 1.6mm-3.2mm |
---|---|---|---|
Surface Treatment: | Galvainzed Or PVC | Application: | Animal Farming, Park Fences, Forest Protection |
Feature: | Anti-corrosion | Barbed Distance: | 3"--6" |
Barbed Length: | 1.5-3cm | Package: | Woven Bag |
Type: | Barbed Wire Coil | Color: | Blue ,green, Yellow Etc |
High Light: | bulk coiled razor wire,25kg coiled razor wire,25kg coated barbed wire |

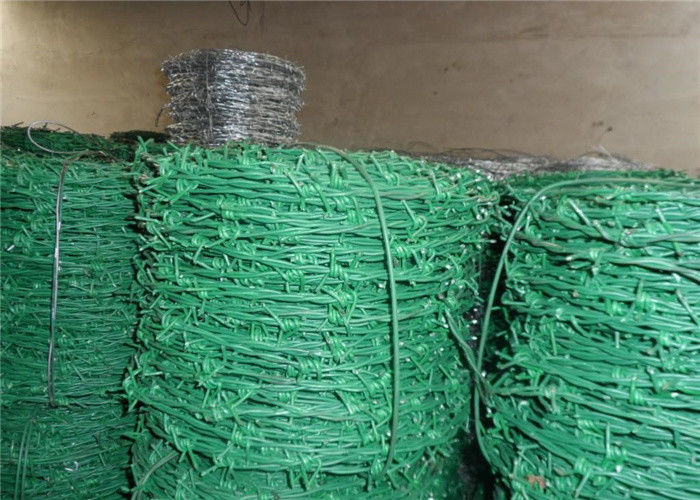

Galvanized roll for sale Razor Barbed Wire/25kg Barbed Wire Price/pvc coated barbed wire coil/barbed iron wire
1.Wire Materials: electric galvanized wire, hot dip galvanized wire, stainless steel wire or PVC coated iron wire in blue, green, yellow and other colors.
2. Specification of barbed wire
Specification PVC Coated Barbed Wire
Wire Gauge | Barb Spacing (cm) | Barb Length (cm) | ||
PVC Coated Or PE Coated |
Before coating | After coating | 7.5-15 | 1.5-3.0 |
1.0mm-3.5mm | 1.4mm-4.0mm | |||
BWG11-20 | BWG8-17 | |||
PVC or PE coating thickness: 0.4mm to 0.6mm; Different colors or length are available per customer’s request |
Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
1.0mm-3.5mm | 1.4mm-4.0mm | |||
BWG11#-20# | BWG8#-17# | |||
SWG11#-20# | SWG8#-17# | |||
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
|
The standard specification
Wire gauge | Weight 10kgs per coil | Weight 15kgs per coil | Weight 25kgs per coil | |||
1X20FCL | Length | 1X20FCL | Length | 1X20FCL | Length | |
16#X16# | 15TONS | 160M | 15TONS | 240M | 16TONS | 400M |
16#X14# | 16TONS | 125M | 16TONS | 180M | 17TONS | 300M |
14#X14# | 17TONS | 100M | 17TONS | 150M | 18TONS | 250M |
14#X12# | 18TONS | 80M | 18TONS | 120M | 19TONS | 200M |
12#X12# | 19TONS | 65M | 19TONS | 100M | 20TONS |
160M |
Usage: used in protecting grass boundary, railway, highway etc.
1.Packed in wooden cases;
